AV-860h

32GB HBM, High-Speed I/O, and PCIe Gen5

AV-860h PCIe card

AMD's Next-Gen Programmable Hardware

The AMD Versal Adaptive SoCs integrate networked, power-optimized cores on an adaptable platform for the most challenging compute and networking applications.

  • 7nm Architecture: Versal architecture combines high bandwidth and compute density on an adaptable platform.
  • 800GBps Memory Bandwidth: A hardened memory NoC supports ultra-high memory bandwidth at over 800 TBps using HBM2e.
  • PCIe Gen5 Support: Data transfer speeds 2x faster than Gen4, and high-speed interface between CPUs and workload accelerators.

Versal Premium Video

7nm Architecture

The latest generation 7nm architecture combines adaptable compute engines with a breadth of hardened memory and interfacing technologies for superior performance/watt over competing 10nm FPGAs.

800GBps Memory Bandwidth

The Versal HBM series features in-package HBM2e providing up to 819 GBps memory bandwidth and 32 GB capacity to minimize power, area, and latency for compute-intens.ive applications

PCIe Gen5 Support

PCIe Gen5 supports data transfer speeds 2x higher than PCIe Gen4, providing greater performance capabilities to developers of PC interconnect, graphics adapters, and chip-level communications.

In Partnership with

LDA technologies

Brought to market in partnership with LDA Technologies, the AV-860h is a PCIe Gen5 accelerator card designed to deliver extreme performance for data center and edge compute workloads.

PCI Express logo

Generation 5.0

Double the Bandwidth!

Built with the latest PCIe Gen5 interface, the AV-860h can transfer up to twice the bandwidth of Gen4 devices.

Flexible Expansion IO

The AV-860h offers a range of  I/O flexibility to meet your application needs.

  • Eight ARC-16 connectors are available on the front panel and top of the card connected to the Adaptive SoC via 64 SerDes channels
  • Connect to I/O add-ons, such as a QSFP-DD daughter card or LDA’s D6 Mark II Layer 1 server

The ARC-16 ports are designed for connecting high-speed I/O add-ons to the AV-860h. Contact BittWare to learn about available add-ons or to discuss a custom design.

LDA QSFP add-on card for AV-860h
LDA D6 Mark II card

Connect up to four QSFP-DD daughter cards to the ARC6-16 I/O ports. The cards install in adjacent PCIe slots.

The D6 Mark II is a Layer 1 Server add-on card from LDA Technologies that can connect to the AV-860h.

Ultra High-Speed Memory

With in-package HBM2e, the AV-860h provides ultra high-speed memory for compute-intensive workloads

  • 32GB HBM in-package memory for
  •

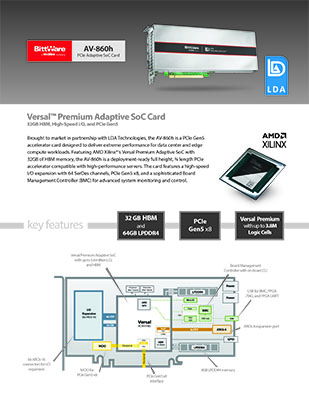

AV-860h Block Diagram, Data Sheet and Specifications

Board Specifications

Adaptive SoC

  • Versal HBM Series
    • XCVH1582
    • Core speed grade - 2
    • 32 GB HBM

On-Board flash

  • Flash memory for booting FPGA

External memory

  • 32GB LPDDR4 @ 4266MHz -or- 64GB LPDDR4 @ 3733MHz

Host interface

  • PCIe x8 Gen5 interface direct to FPGA, connected to PCIe Hard IP

I/O Expansion

  • 8x ARC6-16 connectors for I/O expansion
  • Connected to FPGA via 64x SerDes channels
    • 48x GTYP
    • 16x GTM

ARC6-8

  • ARC6-8 connector connected to FPGA via 4x SerDes channels

Clocking

  • 2x Jitter cleaners for network recovered clocking

USB

  • USB access to BMC, USB-JTAG, USB-UART

Board Management Controller

  • Onboard CLI
  • Python, C++ API
  • 200 Mbps parallel port connected to the FPGA fabric and the NOC
  • USB SD Card Reader for simple OS images transfer to ARM processors
  • Fast FPGA Boot Flash programming
  • Temperature, voltage, current monitoring
  • SNMP agent for centralized management
  • Dedicated preprogrammed array of 32 MAC addresses
  • I/O ports monitoring. Full QSFP, SFP, QSFP-DD access and programming through CLI and API
  • CLI-based clock selection supporting custom clock configurations

Cooling

  • Standard: dual-width passive heatsink

Electrical

  • On-board power derived from 12V PCIe slot and 2x AUX connectors
  • Power dissipation is application dependent

Environmental

  • Operating temperature: 5°C to 35°C

Form factor

  • Standard-height, 3/4-length, dual-width PCIe card
  • 10 x 4.37 inches (254 x 111.15 mm)

Development Tools

Application development

  • Supported design flows -Vivado Design Suite (HDL, Verilog, VHDL, etc.)

r0 v1
