FPGA Server
TeraBox 5202S
5U Server for FPGA Cards
Overview
BittWare’s TeraBox-5202S offers a 5U, 10 dual-slot chassis supporting Intel’s latest 4th Generation Xeon Scalable processors and PCIe Gen5. Configurations include up to 10 of BittWare’s double-width cards using Achronix, Intel, or AMD Xilinx FPGAs.
Users seeking maximum logic/memory density can choose the VectorPath with the Achronix Speedster7t FPGA and high-bandwidth GDDR6 memory or the IA-860m, which features an Intel Agilex FPGA along with QSFP-DDs and yields up to an impressive 30x 400G. No matter which configuration you choose, you’re getting BittWare’s installation, support, and comprehensive warranty.
Key Features
Up to
40 QSFPs
for 80x 100G or 320x 10/25G
PCIe Gen5
Support for BittWare’s full range of FPGA cards
Up to 10 double-wide FPGA cards can be configured or
12 single-width cards
Chassis Key Specs
- 5U, depth 29 in (737mm)
- Processor: 2x Intel® 4th Generation Xeon® Scalable processors
- Memory: Up to 32x ECC DDR5-4800 DIMMs
- Slots: 10x double-width PCIe Gen5 x16 slots
- Storage: Up to 24x 2.5” hot-swap NVMe/SATA/SAS drive bays (8x 2.5” NVMe dedicated)
- Power supply: 2000W, redundant (2+2), Titanium
FPGA Cards
The TeraBox 5202S is a 5U FPGA server based on the SuperMicro 521GE-TNRT chassis. This server offers two Intel 4th Generation Xeon Scalable CPUs along with high PCIe slot density. With configurations of up to 10 of BittWare’s large double-width cards, this server is an excellent premium option for the 5U form factor.
System Management
For system management, BittWare’s FPGA cards are equipped with a Board Management Controller (BMC), which accepts PLDM commands. Use it along with BittWare’s Software Development Kit to program the FPGA over USB, monitor card power and temperature, and re-program the onboard clocks. You’ll also be able to set points to shut down the card when it gets too hot, access JTAG, or access the software tools remotely.
The TeraBox Advantage
Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.

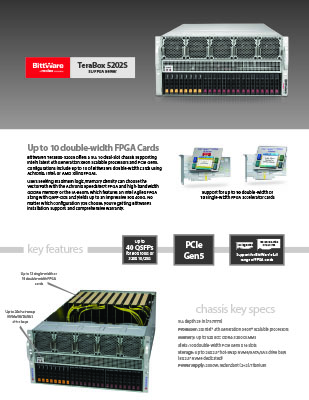

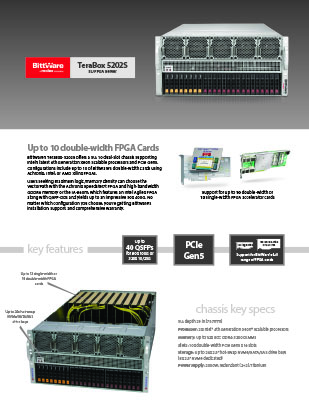

Data Sheet and Specifications
Certified Cards
The TeraBox 5202S supports any of BittWare’s Achronix, Intel, or Xilinx FPGA-based PCIe cards. The table below lists specifications for some of our certified cards*:
| FPGA | Cards in Server | Memory | FPGA Card I/O | Processing | |
|---|---|---|---|---|---|
| S7t-VG6 | Speedster7t | 10 | 4 banks GDDR6 (up to 16 GBytes) | 1x QSFP-DD, 1x QSFP: 6x 100/50/40/25/10 GbE | 692K 6-input lookup tables (LUTs) 375 Mbits embedded RAM |
| IA-780i | Agilex AGI023 | 13 | 2 banks DDR4 (up to 32GBytes) | 2x QSFP-DD: 1x 400 GbE, 2x 200/50 GbE, 4x 100GbE, 16x 10/25 GbE | 2.3M system logic elements ARM HPS |
| IA-860m | Agilex AGM039 | 10 | 32 GBytes HBM2e | 3x QSFP-DDs: 3x 400 GbE, 12x 100GbE, 24x 50 GbE | 3.9M system logic elements ARM HPS |
| XUP-VV8 | UltraScale+ VU13P | 10 | 4 banks DDR4 (up to 512 GBytes); 8 banks QDRII+ (up to 2.3 Gbits) | 4x QSFP-DDs: 8x 100/50/40/25/10 GbE | 3.8 million system logic cells Up to 12,288 DSP slices |
* Subject to availability. Contact BittWare for additional FPGA card options.
Server Configurations
Low
- (2) Intel Xeon Silver 4410Y (2 GHz 12Core / 24Thread) Processors
- (4) 32GB DDR5-4800 memory modules (128GB)
- (2) 480GB NVMe M.2 Drives
- 2700W Redundant Titanium Power Supplies
Medium
- (2) Intel Xeon Gold 5415+ (2.9 GHz 8Core/16Thread) Processors
- (4) 32GB DDR5-4800 memory modules (128GB)
- (2) 480GB NVMe M.2 Drives
- 2700W Redundant Titanium Power Supplies
High
- (2) Intel Xeon Gold 6444Y (3.6GHz 16Core/32Thread) Processors
- (4) 32GB DDR5-4800 memory modules (128GB)
- (2) 480GB NVMe M.2 Drives
- 2700W Redundant Titanium Power Supplies
Ultra
- (2) Intel Xeon Platinum 8480+ (2.0GHz 56Core/112Thread) Processors
- (32) 32GB DDR5-4800 memory modules (1TB)
- (2) 480GB NVMe M.2 Drives
- 2700W Redundant Titanium Power Supplies
Interested in Pricing or More Information?
Our technical sales team is ready to provide availability and configuration information, or answer your technical questions.
