Overview
At the extreme of FPGA server density, the TeraBox 1400B gives the highest level of compute and network capability in a 1U chassis. This server provides up to 3.2Terabits/second of I/O and the power of 4 of our largest Achronix Speedster 7t, Intel Stratix 10, or Xilinx UltraScale+ FPGAs. The CPU host also provides premium performance with two Intel Xeon Platinum 8180 processors.
Key Features
Up to
16 QSFP-DDs
for 32x 100G or 128x 10/25G
1U
4 FPGAs in a 1U server
Support for BittWare’s full range of FPGA cards
Chassis Key Specs
- Processor: Intel® Xeon® Scalable Processors
- Memory: 24x ECC DDR4 DIMMs

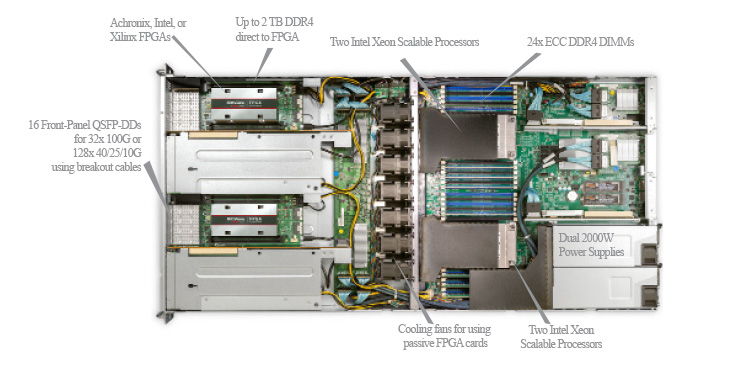

- Slots: 4x PCIe Gen3 x16 with front panel access
- Power supply: 2000W redundant PSU
BittWare FPGA Cards
The TeraBox 1400B supports up to four dual-slot BittWare PCIe FPGA cards. Choose from a variety of cards based on the Speedster 7t, Stratix 10, or UltraScale+ FPGAs. System specs will vary greatly, depending on the FPGA card you select. For example, with four BittWare UltraScale+ PCIe cards, which support up to 512 Gbytes of DDR4 per card, the chassis can support as much as 2 Terabytes of DDR4 on the FPGA cards in 16 banks. With four Stratix 10 cards, each chassis supports 10 million logic elements.
Development Support
BittWare offers complete development support for the PCIe cards in the TeraBox 1400B system. Our Xilinx FPGA cards are supported by the BittWorks II Toolkit – a collection of libraries and applications that provides complete hardware and FPGA interfaces – along with BittWare’s FPGA examples for traditional HDL FPGA development. Stratix 10 cards include an OpenCL BSP for a high-level software-like FPGA development flow.
The TeraBox Advantage
Choosing a TeraBox FPGA server means knowing you are getting a pre-configured and tested solution. This includes setup and installation of your FPGA cards and associated hardware, your choice of operating system, and development tools. Your TeraBox arrives ready for use—giving your team more time for development and deployment.

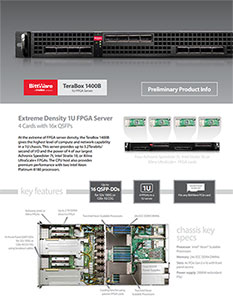

Data Sheet and Specifications
Certified Cards
The TeraBox 1400B supports many of BittWare’s Achronix, Intel, or Xilinx FPGA-based PCIe cards. The table below lists system totals when populated with four of our certified* cards:
| FPGA | Cards in Server | Memory | I/O | Processing | |
| XUP-VV4 | UltraScale+ VU13P | 4 | 16 banks DDR4 (up to 2 Terabytes) 32 banks QDRII+ (up to 9.216 Gbits) 3.2 Terabits/sec | 16x 100/50/40/25/10 GbE 15 million system logic cells Up to 49,152 DSP slices | 15 million system logic cells Up to 49,152 DSP slices |
| XUP-VVH | UltraScale+ VU37P | 4 | 8 banks DDR4 (up to 1 TeraByte) 16 banks QDRII+ (up to 4.6 Gbits) 3.2 Terabits/sec | 16x 100/50/40/25/10 GbE 11 million system logic cells 32 GBytes HBM2 | 11 million system logic cells 32 GBytes HBM2 |
* Subject to availability. Contact BittWare for additional FPGA card options.
Server Configurations
Low
- (2) Intel Xeon Bronze 3106 Processors (1.7GHz, 8C/8T)
- 48GB DDR4
- (2) 1TB M.2 SSD
- 2000W Redundant Power Supplies
Medium
- (2) Intel Xeon Silver 4114 Processors (2.2GHz, 10C/20T)
- 96GB DDR4
- (2) 1TB M.2 SSD
- 2000W Redundant Power Supplies
High
- (2) Intel Gold 6132 Processors (2.6GHz, 14C/28T)
- 192GB DDR4
- (2) 1TB M.2 SSD
- 2000W Redundant Power Supplies
Ultra
- (2) Intel Xeon Platinum 8180 Processors (2.5GHz, 28C/56T)
- 768GB DDR4
- (2) 1TB M.2 SSD
- 2000W Redundant Power Supplies
